Exploratory Data Analysis:
Quantitative Data

STAT 200 - Lecture 3

Exploratory Data Analysis (EDA)

• One of the most critical steps when studying a new problem and data set.

• EDA helps us to:

  • better understand the data;
  • find new and frequently unexpected relationships between variables;
  • raise interesting questions about the study;

Disclaimer

• You are in the driver seat of your EDA.
  • There’s no recipe;
  • Little thought yields small findings
• In general, EDA findings are preliminary that require more investigation.

Quantitative Variables

Penguins Heights

original_penguins = ({sizes: Array(61, 103,  91,  57, 116,  95,  67, 115,  68,  96, 103, 105,  81,  95,  92, 70)});
penguins = ({sizes: Array(61, 103,  91,  57, 116,  95,  67, 115,  68,  96, 103, 105,  81,  95,  92, 70)});

{
  original_penguins.avg_size = original_penguins.sizes.reduce((a,b) => a+b, 0) / penguins.sizes.length;
  original_penguins.var = original_penguins.sizes.reduce((a,b) => a+(b-original_penguins.avg_size)**2/(original_penguins.sizes.length-1), 0);
  penguins.avg_size = original_penguins.avg_size;
  penguins.var = original_penguins.var;
}

viewof size_bar = {
  let input = Inputs.range([80, 130],
                           {value: penguins.avg_size,
                            step: 1,
                            label: "Penguins Sizes: "});
  d3.select(input).select('input[type="number"]').style("display", "none");
  return input;
}

viewof var_bar = {
  let input = Inputs.range([0, 700],
                           {value: penguins.var,
                            step: 1,
                            label: "Penguins Variability: "});
  d3.select(input).select('input[type="number"]').style("display", "none");
  return input;
}

// Change penguins size according to size_bar
{
  penguins.sizes = penguins.sizes.map( size => {
    return size + (size_bar - penguins.avg_size)
  });

  penguins.avg_size = penguins.sizes.reduce((a,b) => a+b, 0) / penguins.sizes.length;
  d3.selectAll("#container-mean").selectAll("img").data(penguins.sizes).attr("height",  x => x);

  return penguins;
}

// Change penguins variability according to var_bar
{
  penguins.sizes = original_penguins.sizes.map( size => {
    return penguins.avg_size + (size - original_penguins.avg_size) * var_bar**0.5 / original_penguins.var**0.5
  });

  penguins.avg_size = penguins.sizes.reduce((a,b) => a+b, 0) / penguins.sizes.length;
  penguins.var = penguins.sizes.reduce((a,b) => a+(b-penguins.avg_size)**2/(penguins.sizes.length-1), 0);
  d3.selectAll("#container-mean").selectAll("img").data(penguins.sizes).attr("height",  x => x);

  return penguins;
}

When summarizing the data, discuss the idea of location and scale (variability). This will illustrate the necessity of the different summary quantities we will be presenting.

Location

Measures of Centrality

• The measure of centrality tell us where our data is located in the real line.

• Two important measures of centrality are: mean and median.

• You can think of the mean and median as “typical” values of your data set.

Mean (\(\bar{y}\))

• The mean is calculated as \[ \bar{y} = \frac{1}{n}\sum_{i=1}^n y_i = \frac{y_1+...+y_n}{n} \]

Notation:

• \(y_i\) represents the \(i\)th observation (or data point), and
• \(\sum_{i=1}^ny_i\) means to sum \(y_1\), \(y_2\), up to \(y_n\), i.e., to sum all the observations.
• \(n\) is commonly used to denote the number of data points.

Example 1: Mean (\(\bar{y}\))

Compute the average of the following 9 length measures of penguins’ flippers (in cm):

\[18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3,\ 19.0\]

The average is

\[\begin{align} \bar{y} & = \frac{18.1+18.6+19.5+19.3+19.0+18.1+19.5+19.3+19.0}{9} \\ & = 18.93\text{ cm} \end{align}\]

Example 1: Mean (\(\bar{y}\))

Compute the average of the following 9 length measures of penguins’ flippers (in cm):

\[18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3,\ 19.0\]

• You can always use R to calculate the mean:

# Stores the values in a variable called "flippers_length"
flippers_length <- c(18.1, 18.6, 19.5, 19.3, 19.0, 18.1, 19.5, 19.3, 19.0)

# Calculates the mean of the values stored in "flippers_length"
mean(flippers_length)

[1] 18.93333

Median (\(Q_2\))

• The median is the value that splits equally the data set into two parts:
  • at least half of the observations are lower than or equal to the median;
  • at least half of the observations are higher than or equal to the median;

Median (\(Q_2\))

• To calculate the median (denoted by \(Q_2\)), we must first arrange the data in ascending order.

• Then, if the number of observations is:

  • odd: the median (\(Q_2\)) is the middle observation (i.e., the observation in position (n+1)/2);
  • even: the median (\(Q_2\)) is the average of the two central observations (i.e., the observations in positions (n/2) and (n/2+1));

Example 2: Median (\(Q_2\))

Compute the median of the following 9 length measures of penguins’ flippers (in cm):

\[18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3,\ 19.0\]

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

Example 2: Median (\(Q_2\))

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

• Then, we select the central observation as the median.
  • Since we have n = 9, which is odd, we select observation in position (9+1)/2 = 5.

Example 2: Median (\(Q_2\))

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ 19.0,\ \color{red}{\underline{19.0}},\ 19.3,\ 19.3,\ 19.5,\ 19.5 \]

• Then, we select the central observation as the median.
  • Since we have n = 9, which is odd, we select observation in position (9+1)/2 = 5.
  • \(Q_2=19.0\)

Example 3: Median (\(Q_2\))

Compute the median of the following 8 length measures of penguins’ flippers (in cm):

\[18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3\]

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

Example 3: Median (\(Q_2\))

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

• Then, we calculate the average of the two central observations.
  • Since we have n = 8, which is even, we select the 8/2 = 4th and 8/2 + 1 = 5th observations.

Example 3: Median (\(Q_2\))

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ \color{red}{\underline{19.0}},\ \color{red}{\underline{19.3}},\ 19.3,\ 19.5,\ 19.5 \]

• Then, we calculate the average of the two central observations.
  • Since we have n = 8, which is even, we select the 8/2 = 4th and 8/2 + 1 = 5th observations.
  • \(Q_2 = (19.0 + 19.3) / 2 = 19.15\)

Example 3: Median (\(Q_2\))

• First, we need to arrange the observations in ascending order:

\[18.1,\ 18.1,\ 18.6,\ \color{red}{\underline{19.0}},\ \color{red}{\underline{19.3}},\ 19.3,\ 19.5,\ 19.5 \]

• You can always use R to calculate the median:

# Stores the values in a variable called "flippers_length"
flippers_length <- c(18.1, 18.6, 19.5, 19.3, 19.0, 18.1, 19.5, 19.3)

# Calculates the mean of the values stored in "flippers_length"
median(flippers_length)

[1] 19.15

Mean vs Median

• Both, the mean and the median, are very useful centrality measurements.

• But they have different behaviors and interpretations.

Mean vs Median - Interpretation

Suppose you want to know how much you will spend on monthly groceries in a given year.

• Mean: the mean gives you an idea of how much you spend per month;
  • some months you will spend a bit more, some months a bit less;
  • but the mean also gives you an idea of the total amount you will spend in a year; just multiply it by 12.

Mean vs Median - Interpretation

Suppose you want to know how much you will spend with groceries per month in a given year.

• Median: The median gives you an idea of how much you spend per month;
  • around 50% of the months you will pay more, and 50% of the months you will spend less than the median;
    • Note the extra precision – for the mean, we said “some months”
  • The median is not based on the total, so you can’t just multiply by 12 to know how much you will spend in a year.

Mean vs Median - Outlier

Let’s return to the 8 length measures of penguins’ flippers (in cm). But this time, we have an additional measurement from a baby penguin:

\[\color{green}{\underline{2.3}}, 18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3\]

• Mean: \(\bar{y} = \frac{2.3 + 18.1 + ... + 19.3}{9} = 17.0778\) (it was \(18.925\));

• Median: \(Q_2 = 19.0\) (it was \(19.15\));

Mean vs Median - Outlier

• In general, the mean will be much more affected by outliers than the median;

Quantiles

• The median is a value such that:
  1. at least 50% of the observations are at or below the median;
  2. at least 50% of the observations are at or above the median;

• But why 50%?
  • Can we use a different percentage?
• Yes! We could use any percentage that we want!
  • These quantities are called quantiles.

Quartiles

• The median is the \(0.5\)-quantile (0.5 is equivalent to 50%).

• You could use any percentage, for example

  • \(0.124\)-quantile; or \(0.0007\)-quantile; or \(0.99\)-quantile;

• There are 3 quantiles that are commonly of interest:

  • \(0.25\)-quantile; \(0.50\)-quantile; and \(0.75\)-quantiles;
  • They are called quartiles!

Quartiles

Calculating First Quartiles (\(Q_1\))

• The first quartile is the median of the first half of the data set:
  1. Arrange the observations in ascending order;
  2. Drop the upper half of the ordered data:
     • \(n\) even: keep the first \(n/2\) observations;
     • \(n\) odd: keep the first \((n+1)/2\) observations;
  3. Calculate the median of the remaining observations.

Third Quartiles (\(Q_3\))

• The third quartile is the median of the second half of the data set:
  1. Arrange the observations in ascending order;
  2. Drop the lower half of the ordered data:
     • \(n\) even: keep the last \(n/2\) observations;
     • \(n\) odd: keep the last \((n+1)/2\) observations;
  3. Calculate the median of the remaining observations.

First Quartile (\(Q_1\)): \(n\) is even

Compute the first quartile of the following 8 length measures of penguins’ flippers (in cm):

\[18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3\]

• First, we need to arrange the observations in ascending order:
  \[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

First Quartile (\(Q_1\)): \(n\) is even

• First, we need to arrange the observations in ascending order:
  \[18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

• Since \(n=8\) is even, we keep the first \(n/2 = 4\) observations

First Quartile (\(Q_1\)): \(n\) is even

• First, we need to arrange the observations in ascending order:
  \[18.1,\ 18.1,\ 18.6, 19.0\color{white}{,\ 19.3,\ 19.3,\ 19.5,\ 19.5} \]

• Since \(n=8\) is even, we keep the first \(n/2 = 4\) observations

First Quartile (\(Q_1\)): \(n\) is even

• First, we need to arrange the observations in ascending order:
  \[18.1,\ \color{red}{18.1},\ \color{red}{18.6}, 19.0\color{white}{,\ 19.3,\ 19.3,\ 19.5,\ 19.5} \]

• Since \(n=8\) is even, we keep the first \(n/2 = 4\) observations

• Calculate the median of the remaining values: \(Q_1 = \frac{18.1+18.6}{2} = 18.35\)

Third Quartile (\(Q_3\)): \(n\) is odd

Let’s bring back the baby penguin. Now, compute the first quartile of the following 9 length measures of penguins’ flippers (in cm):

\[\color{green}{\underline{2.3}}, 18.1,\ 18.6,\ 19.5,\ 19.3,\ 19.0,\ 18.1,\ 19.5,\ 19.3\]

• First, we need to arrange the observations in ascending order:
  \[2.3, 18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

Third Quartile (\(Q_3\)): \(n\) is odd

• First, we need to arrange the observations in ascending order:
  \[2.3, 18.1,\ 18.1,\ 18.6,\ 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5\]

• Since \(n=9\) is odd, we keep the last \((n+1)/2 = 5\) observations

Third Quartile (\(Q_3\)): \(n\) is odd

• First, we need to arrange the observations in ascending order:
  \[\color{white}{2.3, 18.1,\ 18.1,\ 18.6,} 19.0,\ 19.3,\ 19.3,\ 19.5,\ 19.5 \]

• Since \(n=9\) is odd, we keep the last \((n+1)/2 = 5\) observations

Third Quartile (\(Q_3\)): \(n\) is odd

• First, we need to arrange the observations in ascending order:
  \[\color{white}{2.3, 18.1,\ 18.1,\ 18.6,} 19.0,\ 19.3,\ \color{red}{19.3},\ 19.5,\ 19.5 \]

• Since \(n=9\) is odd, we keep the last \((n+1)/2 = 5\) observations

• Calculate the median of the remaining values: \(Q_3 = 19.3\)

Quantiles using R

Using R:

# Stores the values in a variable called "flippers_length"
flippers_length <- c(18.1, 18.6, 19.5, 19.3, 19.0, 18.1, 19.5, 19.3)

# Calculates the quantiles of the values stored in "flippers_length"
quantile(flippers_length, 0.25) # First quartile

   25%
18.475

quantile(flippers_length, 0.50) # Second quartile

  50%
19.15

quantile(flippers_length, 0.75) # Third quartile

  75%
19.35

Warning

R uses a fancier way to obtain quantiles, which might differ slightly from what you get using this approach.

Exercise

The final exam for STAT 200 was scheduled at a different time of the day than the lecture. You want to learn how long it takes to get to UBC at the time of the day so you know when to leave home. You asked your usual bus driver. As a passionate statistician hobbyist, the bus driver asked what measure of centrality you want to know:

1. mean commute time;
2. median commute time;
3. another commute time quantile; which one?
4. I have no idea!

Explain your answer!

The idea here is to discuss that the mean is of harder interpretation here. Quantiles have a much easier interpretation, as the proportion of days that it would take longer for us to commute to Microsoft’s Office.

The answer we are looking for here is any high quantile, say \(0.9\), \(0.95\), \(1\).

Scale

Variability measures

• The measures of centrality are very helpful to tell us where the data is centred around.

• However, they don’t tell us how much the data varies.

• There are two very important variability measures: standard deviation and interquartile range;

Variance

• Variance is the “arithmetic average” of the squared deviation from the mean:

\(\quad\quad\ \ S^2 = \frac{\sum_{i=1}^n(y_i-\bar{y})^2}{n-1} = \frac{(y_1 - \bar{y})^2 + (y_2 - \bar{y})^2 + \ldots + (y_n - \bar{y})^2}{n-1}\)

Caution

Note that we divide by \(n-1\) and not by \(n\).

Variance

Calculate the variance of penguins’ heights. The observed data is given below:

Variance - Step 1

Variance - Step 2

Variance - Step 3

Variance

You can also use R:

# Stores the values in a variable called "penguins_height"
penguins_height <- c(50, 100, 75, 88, 65)

# Calculates the variance of the values stored in "penguins_height"
var(penguins_height)

[1] 379.3

Standard Deviation

• The problem with the variance is that it uses the square of the deviations;
  • This affects the unit of measurement, and our interpretation;
• To fix that, we can take the square root of the variance: \[ S = \sqrt{S^2} \] \(S\) is called standard deviation;

Properties of Standard Deviation

• Std. Deviation is always non-negative (\(\geq 0\)).

• If you sum all observations by a constant \(c\), the std. deviation does not change.

• If you multiply all observations by a constant \(c\), then the std. deviation is also multiplied by \(c\).

Interquartile range (IQR)

• It is the range that encloses the middle 50% of the observations: \[ IQR = Q_3 - Q_1 \]

You can use the IQR function in R to compute the IQR:

# Stores the values in a variable called "penguins_height"
penguins_height <- c(50, 100, 75, 88, 65)

# Calculating the IQR using quantiles
quantile(penguins_height, 0.75) - quantile(penguins_height, 0.25)

75%
 23

# Or your can use the IQR function
IQR(penguins_height)

[1] 23

Visualization of quantitative variables

Histogram

• Since we are dealing with quantitative variables, we don’t have categories to count and should not use a bar chart;

• We use histograms to create bins and then count how many observations there are in each bin.

• There are some specificities in histogram:

  • There should be no space between bins.

Histogram

viewof seed2 = Inputs.text({label: "Seed", placeholder: "Enter the seed", value: "12345"});

Histogram of peguin heights

histogram = {
  const n = 20;

  Math.seedrandom(seed2);
  let runif = (a, b, n) => {
    let numbers = new Array();
    for (let i = 0; i < n; i++){
      numbers[i] = Math.round(Math.random() * (b-a) + a);
    }
    return numbers;
  };

  const data_penguins_height = runif(50, 79, n);

  // add the randomly generated size to the cells
  let penguins_container = document.querySelector("#penguin-container-histogram").querySelectorAll(".penguin-hist");
  for (let i = 0; i < n; i++){
    const penguin = penguins_container[i];
    let penguins_paragraphs = penguin.querySelectorAll("p");
    if (penguins_paragraphs.length > 1)  penguins_paragraphs[1].remove()

    //penguins_paragraphs[0].querySelector("img").height = +data_penguins_height[i];

    const p = document.createElement("p");
    p.innerText = data_penguins_height[i].toString() + ' cm';
    penguin.append(p);
  }


  // set the dimensions and margins of the graph
  var margin = {top: 10, right: 30, bottom: 100, left: 100},
      width = 600 - margin.left - margin.right,
      height = 420 - margin.top - margin.bottom;

  // append the svg object to the body of the page
  d3.select("#penguins-histogram").html("");
  var svg = d3.select("#penguins-histogram")
    .append("svg")
      .attr("width", width + margin.left + margin.right)
      .attr("height", height + margin.top + margin.bottom)
    .append("g")
      .attr("transform",
          "translate(" + margin.left + "," + margin.top + ")");


  // X axis: scale and draw:
  var x = d3.scaleLinear()
      .domain([40, 90])
      .range([0, width]);
  svg.append("g")
      .attr("transform", "translate(0," + height + ")")
      .call(d3.axisBottom(x).ticks(6));

  // Y axis: initialization
  var y = d3.scaleLinear()
      .range([height, 0]);
  var yAxis = svg.append("g")


  // A function that builds the graph for a specific value of bin
  //const nBin = 10;

    // set the parameters for the histogram
    var histogram = d3.histogram()
        .value(function(d) { return d; })   // I need to give the vector of value
        .domain(x.domain())  // then the domain of the graphic
        .thresholds(x.ticks(nBin)); // then the numbers of bins

    // And apply this function to data to get the bins
    var bins = histogram(data_penguins_height);

    // Y axis: update now that we know the domain
    y.domain([0, d3.max(bins, function(d) { return d.length+2; })]);   // d3.hist has to be called before the Y axis obviously
    yAxis
        .transition()
        .duration(1000)
        .call(d3.axisLeft(y).ticks(5));

    // Y-label
    svg.append("text")
       .attr("x", x(35))
       .attr("text-anchor", "middle")
       .attr("transform", "rotate(-90)")
       .attr("y", y(d3.max(bins, function(d) { return d.length+2; })/2))
       .attr("class", 'axesLabel')
       .text("frequency")
       .style('transform-box', 'fill-box')
       .style('transform-origin', '50% 50%');

    svg.append("text")
       .attr("x", x(65))
       .attr("text-anchor", "middle")
       .attr("y", 360)
       .attr("class", 'axesLabel')
       .text("Height (cm)")

    // Join the rect with the bins data
    svg.append("g")
        .attr("fill", "#69b3a2")
        .selectAll("rect")
        .data(bins)
        .join("rect")
        .attr("x", d => x(d.x0) + 1)
        .attr("width", d => Math.max(0, x(d.x1) - x(d.x0) - 1))
        .attr("y", d => y(d.length))
        .attr("height", d => y(0) - y(d.length))
        .attr("class", 'bin')
        .on("mouseenter", (d, i, nodes) => {
            // Mouse-over event: turns the bin red and add the number of data points in the bin to the top of the bin
            d3.select(d.target).attr("fill", "red");

            d3.select(d.target.parentNode)
                .append("text")
                .attr("x", (x(i.x0) + x(i.x1)) / 2)
                .attr("text-anchor", "middle")
                .attr("y", y(i.length + .25))
                .attr("class", "freq")
                .text(i.length)
                .property("bar", d.target)
                .style('font-size','0.7em');

            d3.select(d.target).style("cursor", "pointer"); // change the cursor

            document.querySelectorAll(".penguin-hist")
                    .forEach(entry => {
                        let value = +entry.querySelectorAll("p")[1].textContent.split(" ")[0];

                        if (value >= d.target.__data__.x0 &&
                            value < d.target.__data__.x1){
                            entry.style.border = "3px solid red";
                    }
            });
        })
        .on("mouseout", (d, i, nodes) => {
            // Mouse-out event: returns to the original configuration
            if (!d.target.flag) {
                d3.select(d.target).attr("fill", "#69b3a2")
                d3.selectAll(".freq")
                    .filter((e, j, texts) => {
                        return texts[j].bar === d.target;
                    }).remove();
                d3.select(d.target).style("cursor", "default");
                document.querySelectorAll(".penguin-hist")
                    .forEach(entry => {
                        let value = +entry.querySelectorAll("p")[1].textContent.split(" ")[0];

                        if (value >= d.target.__data__.x0 &&
                            value < d.target.__data__.x1){
                            entry.style.border = "";
                        }
                    });
            }
        });

  svg.selectAll("text").style('font-size', "1.5em");
  svg.selectAll(".axesLabel").style('font-size', ".8em");

}

viewof nBin = {
  let input = Inputs.range([1, 16],
                           {value: 5,
                            step: 1,
                            label: "Number of Bins: "});
  d3.select(input).select('input[type="number"]').style("display", "none");
  return input;
}

Boxplot

Boxplot of peguin heights

viewof seed = Inputs.text({label: "Seed", placeholder: "Enter the seed", value: "12345"});
viewof extra_info = Inputs.toggle({label: "Show Extra Info", value: false})

a = {
  seed;
  document.querySelector("#boxplot-seed").querySelector("label").style.width = 'fit-content';
  document.querySelector("#boxplot-seed").querySelector("input").style.width = '100px';
  document.querySelector("#boxplot-seed").querySelectorAll("label")[1].style.width = 'fit-content';

}

boxplot = {
  const n = 20;

  Math.seedrandom(seed);
  let runif = (a, b, n) => {
      let numbers = new Array();
      for (let i = 0; i < n; i++){
        numbers[i] = Math.round(Math.random() * (b-a) + a);
      }
      return numbers;
  };

  let data_penguins_height = runif(60, 70, n-4);
  data_penguins_height = data_penguins_height.concat(runif(50, 55, 2));
  data_penguins_height = data_penguins_height.concat(runif(75, 79, 2));

  // add the randomly generated size to the cells
  let penguins_container = document.querySelector("#penguin-container-boxplot").querySelectorAll(".penguin-hist");
  for (let i = 0; i < n; i++){
    const penguin = penguins_container[i];
    let penguins_paragraphs = penguin.querySelectorAll("p");
    if (penguins_paragraphs.length > 1)  penguins_paragraphs[1].remove()

    //penguins_paragraphs[0].querySelector("img").height = +data_penguins_height[i];

    const p = document.createElement("p");
    p.innerText = data_penguins_height[i].toString() + ' cm';
    penguin.append(p);
  }


  // set the dimensions and margins of the graph
  var margin = {top: 10, right: 30, bottom: 100, left: 200},
      width = 600 - margin.left - margin.right,
      height = 550 - margin.top - margin.bottom;

  // append the svg object to the body of the page
  d3.select("#penguins-boxplot").html("");
  var svg = d3.select("#penguins-boxplot")
    .append("svg")
      .attr("width", width + margin.left + margin.right)
      .attr("height", height + margin.top + margin.bottom)
    .append("g")
      .attr("transform",
          "translate(" + margin.left + "," + margin.top + ")");


  // Compute summary statistics used for the box:
  var data_sorted = data_penguins_height.sort(d3.ascending)
  var q1 = d3.quantile(data_sorted, .25)
  var median = d3.quantile(data_sorted, .5)
  var q3 = d3.quantile(data_sorted, .75)
  var interQuantileRange = q3 - q1
  var min = q1 - 1.5 * interQuantileRange
  var max = q3 + 1.5 * interQuantileRange
  min = Math.min.apply(Math, data_sorted.filter(function(x){return x >= min}));
  max = Math.max.apply(Math, data_sorted.filter(function(x){return x <= max}));

  if (extra_info){
    // Append the summary statistics to div element
    let boxplot_summary = document.querySelector("#boxplot-summary");
    boxplot_summary.innerHTML = '';
    boxplot_summary.append(document.createElement("hr"));
    let p = document.createElement("p");
    p.innerHTML = "Q<sub>1</sub>: " + q1.toString() + " cm";
    p.style.fontSize = "0.75em";
    boxplot_summary.append(p);
    p = document.createElement("p");
    p.innerHTML = "Q<sub>2</sub>: " + median.toString() + " cm";
    p.style.fontSize = "0.75em";
    boxplot_summary.append(p);
    p = document.createElement("p");
    p.innerHTML = "Q<sub>3</sub>: " + q3.toString() + " cm";
    p.style.fontSize = "0.75em";
    boxplot_summary.append(p);
  }

  // Show the Y scale
  var y = d3.scaleLinear()
    //.domain([d3.min(data_penguins_height), d3.max(data_penguins_height)])
    .domain([50, 80])
    .range([height, 0]);
  svg.call(d3.axisLeft(y).ticks(7));

  // a few features for the box
  var center = 100;
  var width = 100;

  // Show the main vertical line
  svg
  .append("line")
    .attr("x1", center)
    .attr("x2", center)
    .attr("y1", y(min))
    .attr("y2", y(q1))
    .attr("stroke", "black");
   svg
    .append("line")
    .attr("x1", center)
    .attr("x2", center)
    .attr("y1", y(q3))
    .attr("y2", y(max))
    .attr("stroke", "black");

  // Show the box
  svg
  .append("rect")
    .attr("x", center- width/2)
    .attr("y", y(q3))
    .attr("height", (y(q1)-y(q3)))
    .attr("width", width)
    .attr("stroke", "black");
    //.style("fill", "#69b3a2");

  // show median, min and max horizontal lines
  svg
  .selectAll("toto")
  .data([min, max])
  .enter()
  .append("line")
    .attr("x1", center-width/4)
    .attr("x2", center+width/4)
    .attr("y1", function(d){ return(y(d))})
    .attr("y2", function(d){ return(y(d))})
    .attr("stroke", "black");

  if (extra_info){
    svg.append("line")
      .attr("x1", 0)
      .attr("x2", center + width)
      .attr("y1", y(q3 + 1.5*(q3-q1)))
      .attr("y2", y(q3 + 1.5*(q3-q1)))
      .attr("stroke", "black")
      .attr("stroke-width", "1px")
      .attr("stroke-opacity", "0.4")
      .style("stroke-dasharray", ("3, 3"))

    svg.append("line")
      .attr("x1", 0)
      .attr("x2", center + width)
      .attr("y1", y(q1 - 1.5*(q3-q1)))
      .attr("y2", y(q1 - 1.5*(q3-q1)))
      .attr("stroke", "black")
      .attr("stroke-width", "1px")
      .attr("stroke-opacity", "0.4")
      .style("stroke-dasharray", ("3, 3"))
  }

  svg.append("line")
    .attr("x1", center-width/2)
    .attr("x2", center+width/2)
    .attr("y1", y(median))
    .attr("y2", y(median))
    .attr("stroke", "black")
    .attr("stroke-width", "4px");

  svg
      .selectAll("circle")
      .data(data_penguins_height.filter(x => x < min || x > max))
      .enter()
      .append("circle")
      .attr("cx", center)
      .attr("cy", d => y(d))
      .attr("r", "3px")
      .attr("stroke", "black")
      .attr("fill", "black");

  if (extra_info){

    svg
      .selectAll()
      .data(data_penguins_height.filter(x => x >= min && x <= max))
      .enter()
      .append("circle")
      .attr("cx", d => runif(center-width/6, center + width/6, 1))
      .attr("cy", d => y(d))
      .attr("r", "3px")
      .attr("stroke", "blue")
      .attr("fill", "blue");

    // Appending a bunch of texts
    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width/2+5)
      .attr("y", y(median-.35))
      .html("Q")
      .style('font-size', '20px')
      .attr("fill", "black")
      .append('tspan')
      .text('2')
      .style('font-size', '12px')
      .attr('dx', '.1em')
      .attr('dy', '.5em');

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width/2+5)
      .attr("y", y(q1-.35))
      .html("Q")
      .style('font-size', '20px')
      .attr("fill", "black")
      .append('tspan')
      .text('1')
      .style('font-size', '12px')
      .attr('dx', '.1em')
      .attr('dy', '.5em');

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width/2+5)
      .attr("y", y(q3-.35))
      .html("Q")
      .style('font-size', '20px')
      .attr("fill", "black")
      .append('tspan')
      .text('3')
      .style('font-size', '12px')
      .attr('dx', '.1em')
      .attr('dy', '.5em');

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width/4+5)
      .attr("y", y(max-.25))
      .text("Largest point below the upper fence")
      .style('font-size', '14px')
      .attr("fill", "black");

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width/4+5)
      .attr("y", y(min-.25))
      .text("Smallest point above the lower fence")
      .style('font-size', '14px')
      .attr("fill", "black");

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width+5)
      .attr("y", y(q3 + 1.5*(q3-q1)-.25))
      .text("Upper fence: Q3 + 1.5 x IQR")
      .style('font-size', '14px')
      .attr("fill", "black");

    svg.append("text")
      .attr("text-anchor", "start")
      .attr("x", center+width+5)
      .attr("y", y(q1 - 1.5*(q3-q1)-.25))
      .text("Lower fence: Q1 - 1.5 x IQR")
      .style('font-size', '14px')
      .attr("fill", "black");
  }
  // Y-label
  svg.append("text")
      .attr("text-anchor", "middle")
      .attr("transform", "rotate(-90)")
      .attr("x", -50)
      .attr("y", y((85+45)/2))
      .attr("class", 'axesLabel')
      .text("Height (cm)")
      .attr("fill", "black")
      .style('transform-box', 'fill-box')
      .style('transform-origin', '50% 50%');

  svg.selectAll(".tick").selectAll("text").style('font-size', "14px");
  svg.selectAll(".axesLabel").style('font-size', "24px");

}

The shape of distributions

• How many peaks a distribution has?

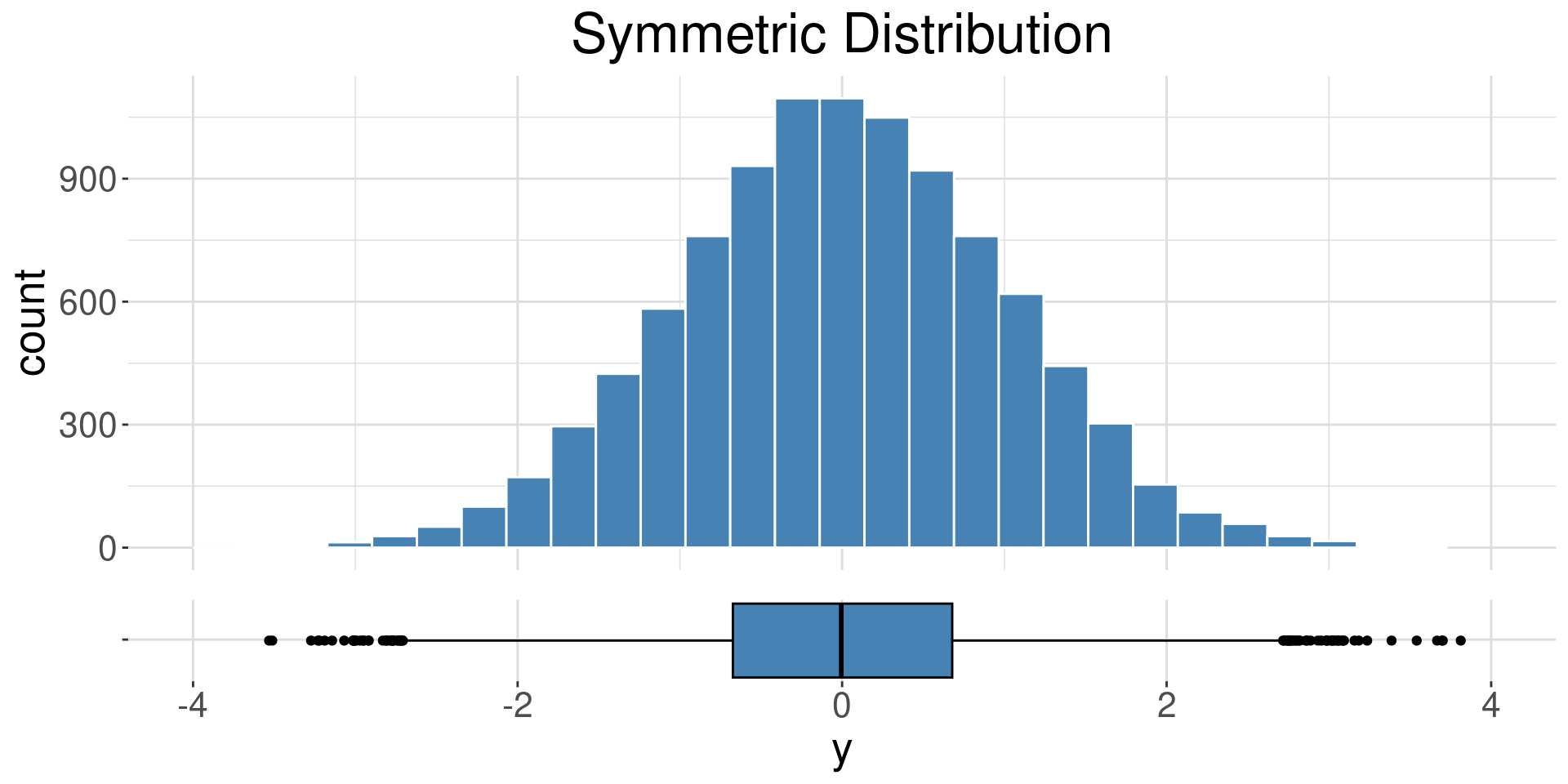

• Is the distribution skewed or symmetric?

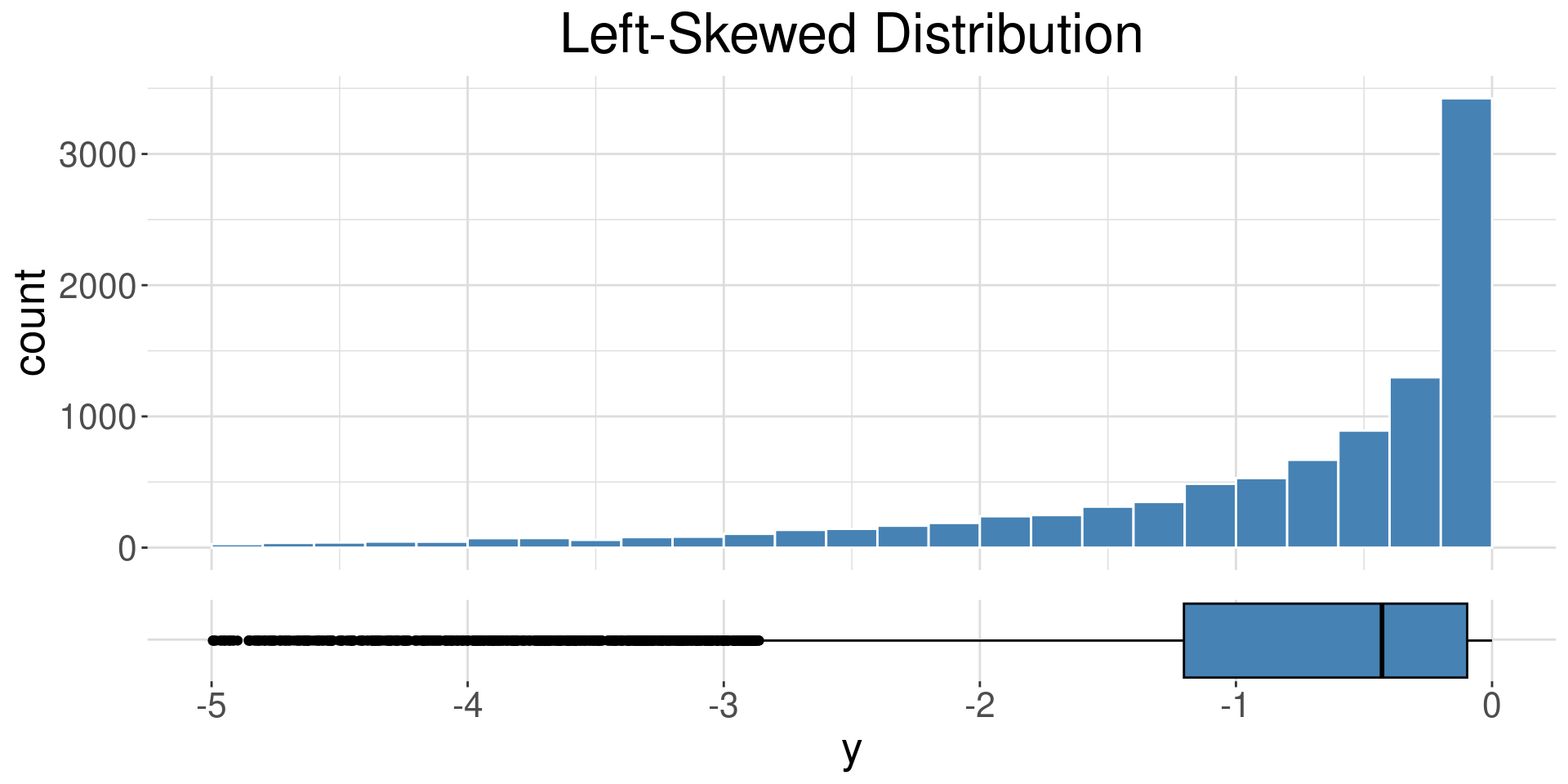

  • skewed to the right: long right-hand tail
  • skewed to the left: long left-hand tail

Symmetry and Skeweness

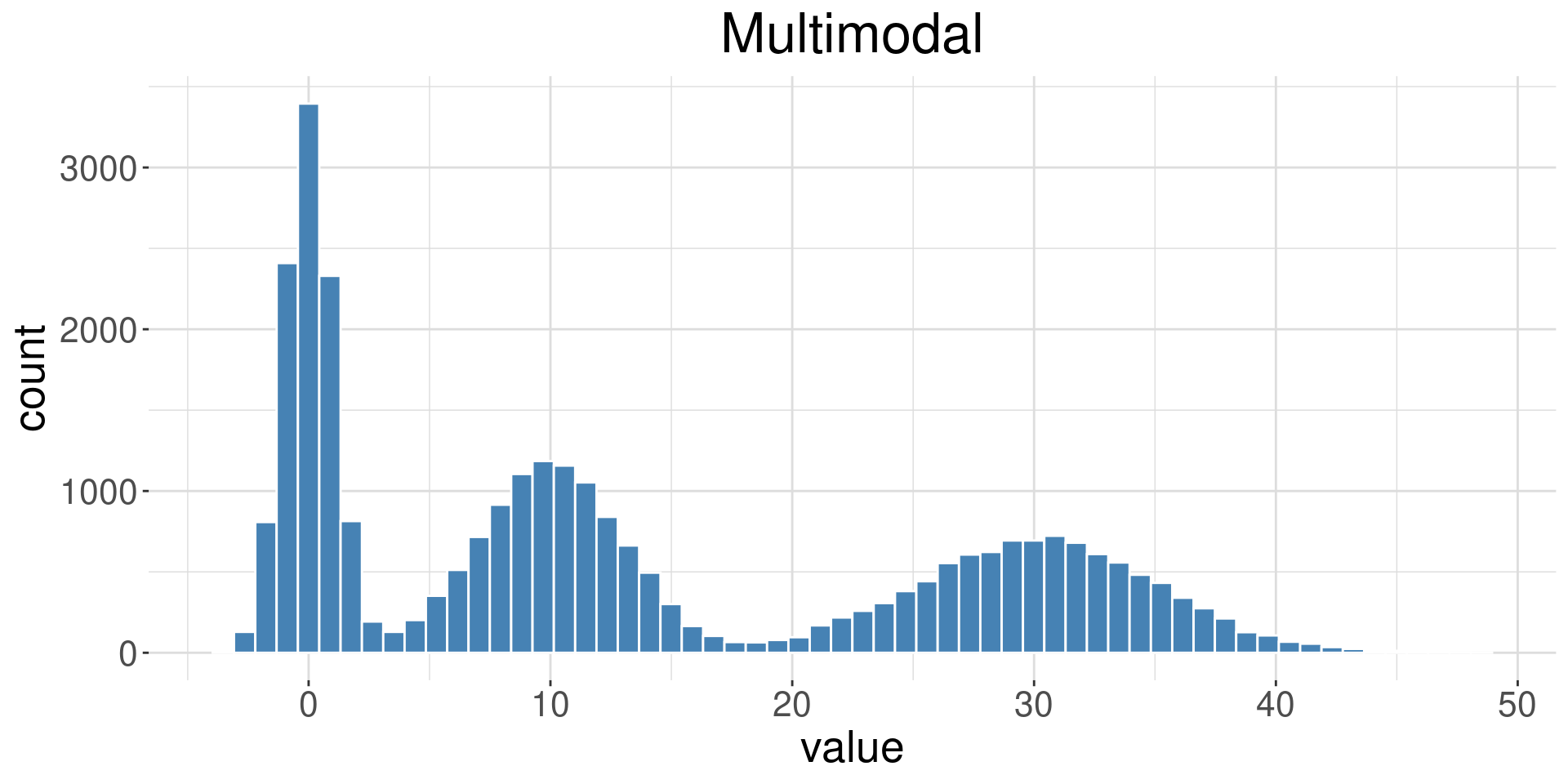

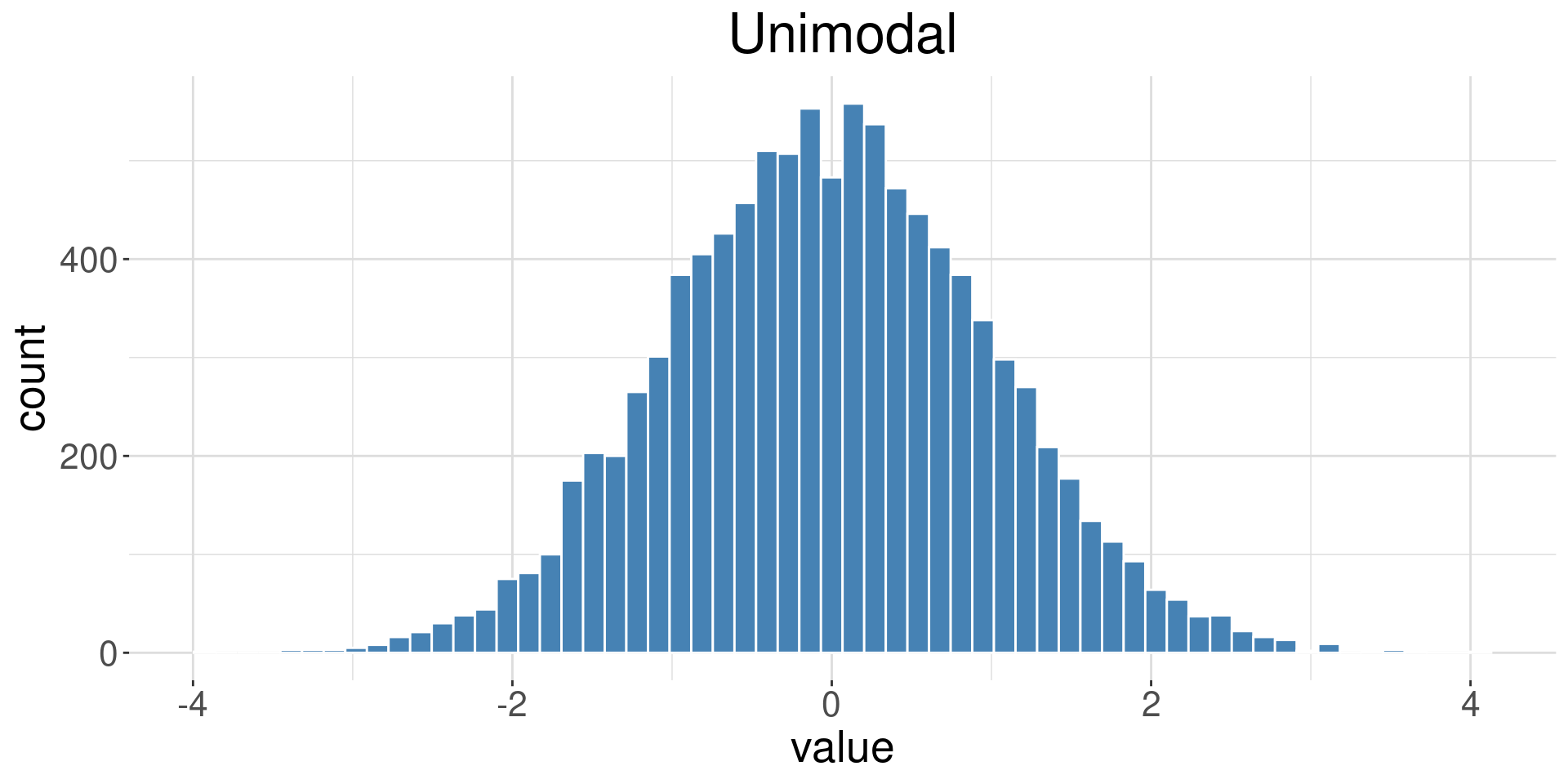

Modality

References & Attributions

Images Attributions:

• Caravel: Lopo Pizarro, CC BY-SA 3.0, via Wikimedia Commons.

• Baby Penguin: Harald Hoyer from Schwerin, Germany, CC BY-SA 2.0, via Wikimedia Commons

• Big Penguin: M. Murphy, Public domain, via Wikimedia Commons
