Linear Regression

STAT 200 - Chapter 7 & 8

Introduction

We learned that the correlation measures the strength and direction of the linear relationship between two variables.
However, we often need more than this, such as quantifying how much the variables vary together and even predicting one variable based on another.

Questions Beyond Correlation

import { d3_createScatterPlot } from "./scripts/d3plots.js"
  import { d3_createScatterPlotWithLine } from "./scripts/d3plots.js"
  import { sumOfSquaredResiduals } from './scripts/d3plots.js'

penguins_array = {
    const maxLength = d3.max(Object.values(penguins_df).map(d => d.length));
    const keys = Object.keys(penguins_df);

    return d3.range(maxLength).map(i =>
      Object.fromEntries(keys.map(key => [key, penguins_df[key][i] || null]))
    );}

penguins_sample_array = {
    const maxLength = d3.max(Object.values(penguins_sample_df).map(d => d.length));
    const keys = Object.keys(penguins_sample_df);

    return d3.range(maxLength).map(i =>
      Object.fromEntries(keys.map(key => [key, penguins_sample_df[key][i] || null]))
    );
}

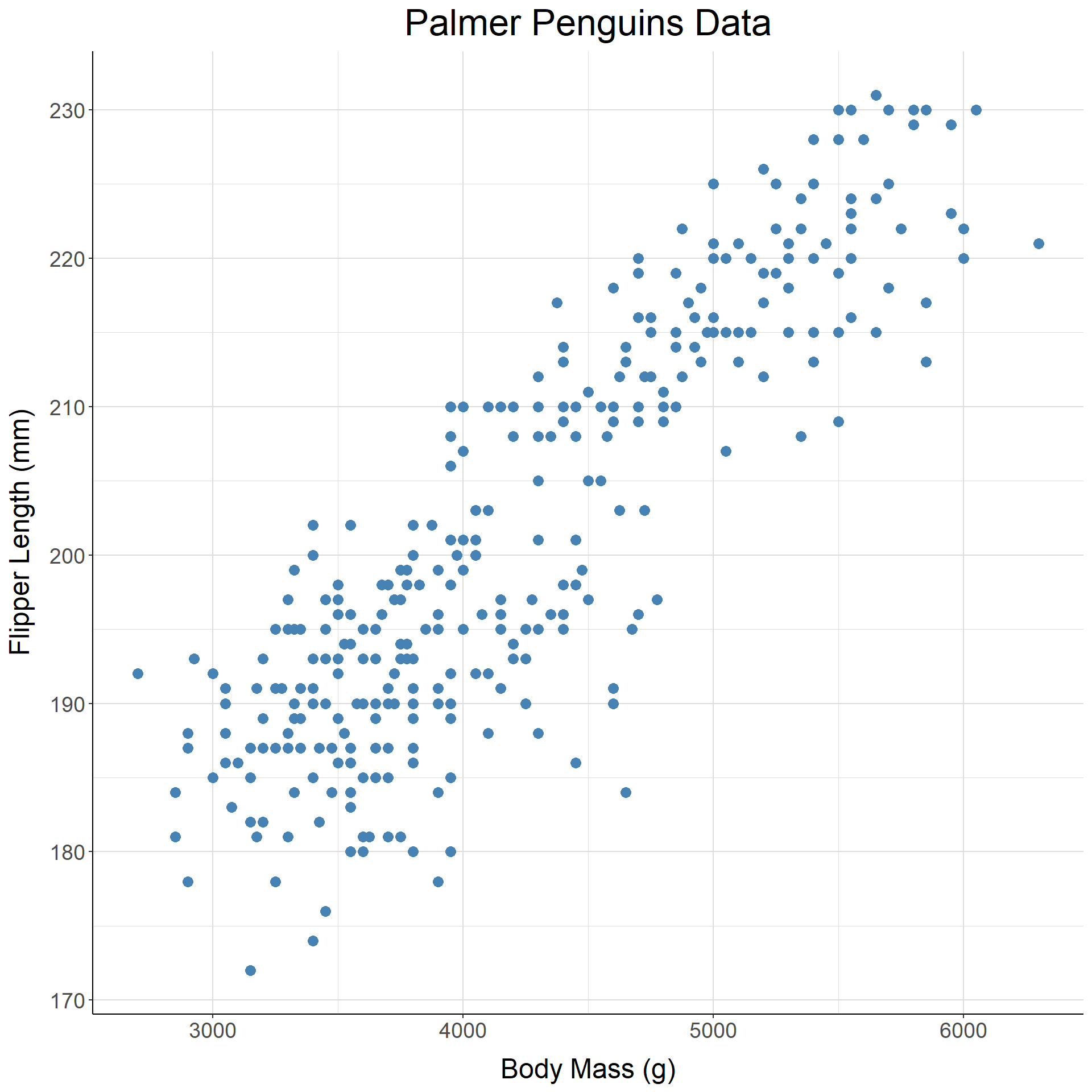

The plot shows a positive correlation between the length and body weight of the flipper.

How much do you expect the body weight to increase for a 1mm increase in the flipper’s length?
For a penguin with a 200mm flipper, what do you expect its body mass to be?

Correlation is not enough

The correlation coefficient tells us the strenght of the linear relationship between two variables;
But it does not directly gives us the answer to these questions;
Linear models provide a mathematical formula to describe the relationship between Flipper’s length and Body weight based on the data.

Simple Linear Regression

Specification

Scroll down

We have two variables:
- Response variable (\(Y\)): what we are trying to predict/explain;
- Explanatory Variable (\(X\)): the variable used to predict the response;

We have \(n\) observations/samples.
- \(Y_i\) and \(X_i\) denote the values of \(X\) and \(Y\) for observation \(i\).
- You can think of it as \(n\) pairs: \((X_1, Y_1), (X_2, Y_2), ..., (X_n, Y_n)\).
For example, for the penguins, \(i\) refers to each penguin and can vary from 1 to 344.

i	flipper_length_mm (X)	body_mass_g (Y)
1	181	3750
2	186	3800
3	195	3250
4	NA	NA
5	193	3450
6	190	3650
7	181	3625
8	195	4675
9	193	3475
10	190	4250
11	186	3300
12	180	3700
13	182	3200
14	191	3800
15	198	4400
16	185	3700
17	195	3450
18	197	4500
19	184	3325
20	194	4200
21	174	3400
22	180	3600
23	189	3800
24	185	3950
25	180	3800
26	187	3800
27	183	3550
28	187	3200
29	172	3150
30	180	3950
31	178	3250
32	178	3900
33	188	3300
34	184	3900
35	195	3325
36	196	4150
37	190	3950
38	180	3550
39	181	3300
40	184	4650
41	182	3150
42	195	3900
43	186	3100
44	196	4400
45	185	3000
46	190	4600
47	182	3425
48	179	2975
49	190	3450
50	191	4150
51	186	3500
52	188	4300
53	190	3450
54	200	4050
55	187	2900
56	191	3700
57	186	3550
58	193	3800
59	181	2850
60	194	3750
61	185	3150
62	195	4400
63	185	3600
64	192	4050
65	184	2850
66	192	3950
67	195	3350
68	188	4100
69	190	3050
70	198	4450
71	190	3600
72	190	3900
73	196	3550
74	197	4150
75	190	3700
76	195	4250
77	191	3700
78	184	3900
79	187	3550
80	195	4000
81	189	3200
82	196	4700
83	187	3800
84	193	4200
85	191	3350
86	194	3550
87	190	3800
88	189	3500
89	189	3950
90	190	3600
91	202	3550
92	205	4300
93	185	3400
94	186	4450
95	187	3300
96	208	4300
97	190	3700
98	196	4350
99	178	2900
100	192	4100
101	192	3725
102	203	4725
103	183	3075
104	190	4250
105	193	2925
106	184	3550
107	199	3750
108	190	3900
109	181	3175
110	197	4775
111	198	3825
112	191	4600
113	193	3200
114	197	4275
115	191	3900
116	196	4075
117	188	2900
118	199	3775
119	189	3350
120	189	3325
121	187	3150
122	198	3500
123	176	3450
124	202	3875
125	186	3050
126	199	4000
127	191	3275
128	195	4300
129	191	3050
130	210	4000
131	190	3325
132	197	3500
133	193	3500
134	199	4475
135	187	3425
136	190	3900
137	191	3175
138	200	3975
139	185	3400
140	193	4250
141	193	3400
142	187	3475
143	188	3050
144	190	3725
145	192	3000
146	185	3650
147	190	4250
148	184	3475
149	195	3450
150	193	3750
151	187	3700
152	201	4000
153	211	4500
154	230	5700
155	210	4450
156	218	5700
157	215	5400
158	210	4550
159	211	4800
160	219	5200
161	209	4400
162	215	5150
163	214	4650
164	216	5550
165	214	4650
166	213	5850
167	210	4200
168	217	5850
169	210	4150
170	221	6300
171	209	4800
172	222	5350
173	218	5700
174	215	5000
175	213	4400
176	215	5050
177	215	5000
178	215	5100
179	216	4100
180	215	5650
181	210	4600
182	220	5550
183	222	5250
184	209	4700
185	207	5050
186	230	6050
187	220	5150
188	220	5400
189	213	4950
190	219	5250
191	208	4350
192	208	5350
193	208	3950
194	225	5700
195	210	4300
196	216	4750
197	222	5550
198	217	4900
199	210	4200
200	225	5400
201	213	5100
202	215	5300
203	210	4850
204	220	5300
205	210	4400
206	225	5000
207	217	4900
208	220	5050
209	208	4300
210	220	5000
211	208	4450
212	224	5550
213	208	4200
214	221	5300
215	214	4400
216	231	5650
217	219	4700
218	230	5700
219	214	4650
220	229	5800
221	220	4700
222	223	5550
223	216	4750
224	221	5000
225	221	5100
226	217	5200
227	216	4700
228	230	5800
229	209	4600
230	220	6000
231	215	4750
232	223	5950
233	212	4625
234	221	5450
235	212	4725
236	224	5350
237	212	4750
238	228	5600
239	218	4600
240	218	5300
241	212	4875
242	230	5550
243	218	4950
244	228	5400
245	212	4750
246	224	5650
247	214	4850
248	226	5200
249	216	4925
250	222	4875
251	203	4625
252	225	5250
253	219	4850
254	228	5600
255	215	4975
256	228	5500
257	216	4725
258	215	5500
259	210	4700
260	219	5500
261	208	4575
262	209	5500
263	216	5000
264	229	5950
265	213	4650
266	230	5500
267	217	4375
268	230	5850
269	217	4875
270	222	6000
271	214	4925
272	NA	NA
273	215	4850
274	222	5750
275	212	5200
276	213	5400
277	192	3500
278	196	3900
279	193	3650
280	188	3525
281	197	3725
282	198	3950
283	178	3250
284	197	3750
285	195	4150
286	198	3700
287	193	3800
288	194	3775
289	185	3700
290	201	4050
291	190	3575
292	201	4050
293	197	3300
294	181	3700
295	190	3450
296	195	4400
297	181	3600
298	191	3400
299	187	2900
300	193	3800
301	195	3300
302	197	4150
303	200	3400
304	200	3800
305	191	3700
306	205	4550
307	187	3200
308	201	4300
309	187	3350
310	203	4100
311	195	3600
312	199	3900
313	195	3850
314	210	4800
315	192	2700
316	205	4500
317	210	3950
318	187	3650
319	196	3550
320	196	3500
321	196	3675
322	201	4450
323	190	3400
324	212	4300
325	187	3250
326	198	3675
327	199	3325
328	201	3950
329	193	3600
330	203	4050
331	187	3350
332	197	3450
333	191	3250
334	203	4050
335	202	3800
336	194	3525
337	206	3950
338	189	3650
339	195	3650
340	207	4000
341	202	3400
342	193	3775
343	210	4100
344	198	3775

The model

The model relating \(X\) and \(Y\) is given by the equation of a line: \[ Y_i = b_0 + b_1 X_i+ \epsilon_i \]

Let’s discuss each of these components in more detail;

The model: components

Scroll down

The model relating \(X\) and \(Y\) is given by the equation of a line: \[ Y_i = \underbrace{b_0}_{\text{intercept}} + \underbrace{b_1}_{\text{slope}} X_i + \underbrace{\epsilon_i}_{\text{error term}} \]

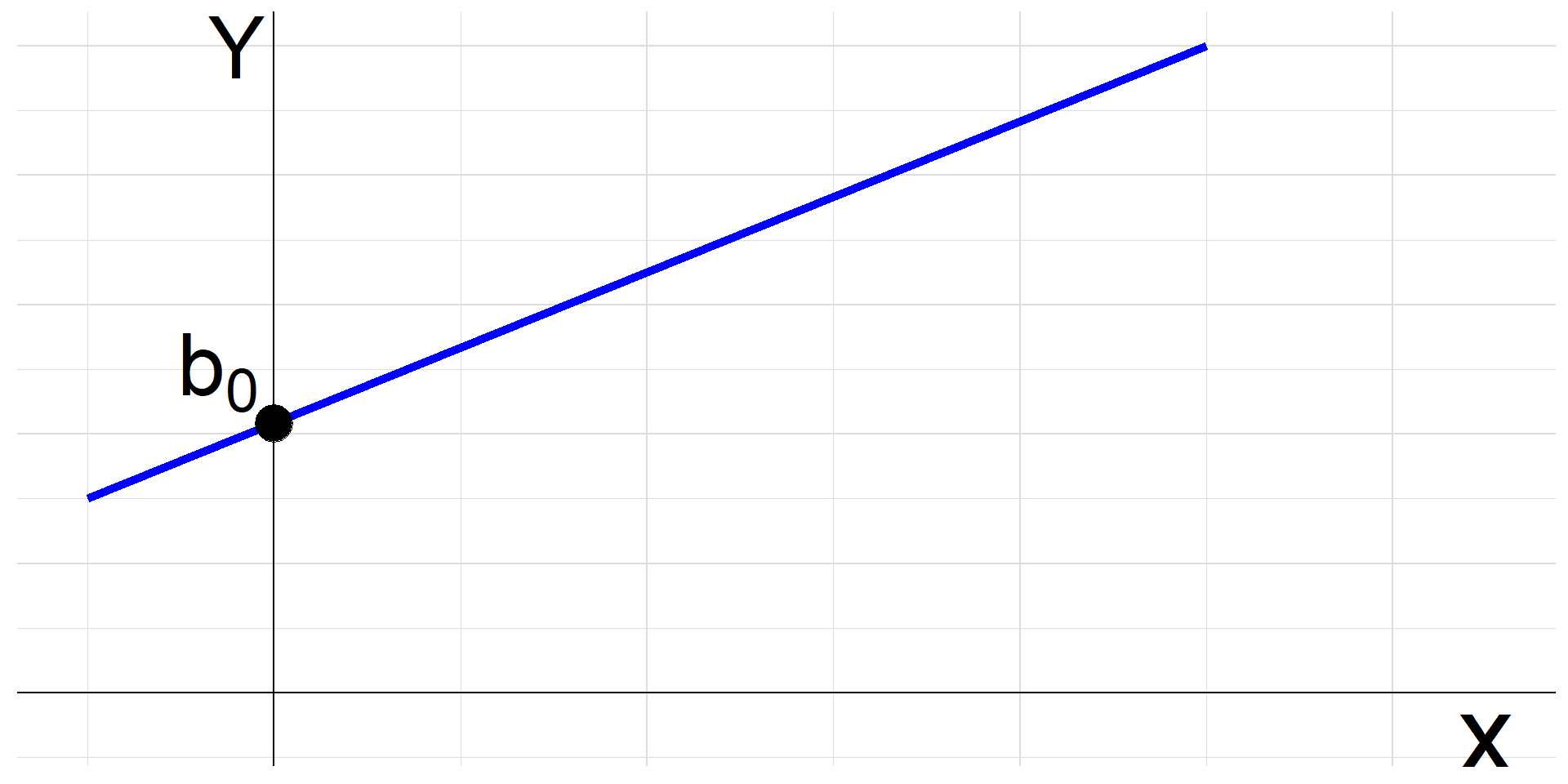

Intercept: tells us the \(Y\) value when \(X=0\) (i.e., the value of \(Y\) when the line crosses the \(Y\)-axis).

Slope: tells us how much change in \(Y\) to expect for a unit increase in \(X\).

Error: captures the variability of the response not explained by the model.

The model: components

The model relating \(X\) and \(Y\) is given by: \[ Y_i = \underbrace{b_0}_{\text{intercept}} + b_1 X_i + \epsilon_i \]

The model: components

The model relating \(X\) and \(Y\) is given by: \[ Y_i = \underbrace{b_0}_{\text{intercept}} + \underbrace{b_1}_{\text{slope}} X_i + \epsilon_i \]

The model: components

Scroll down

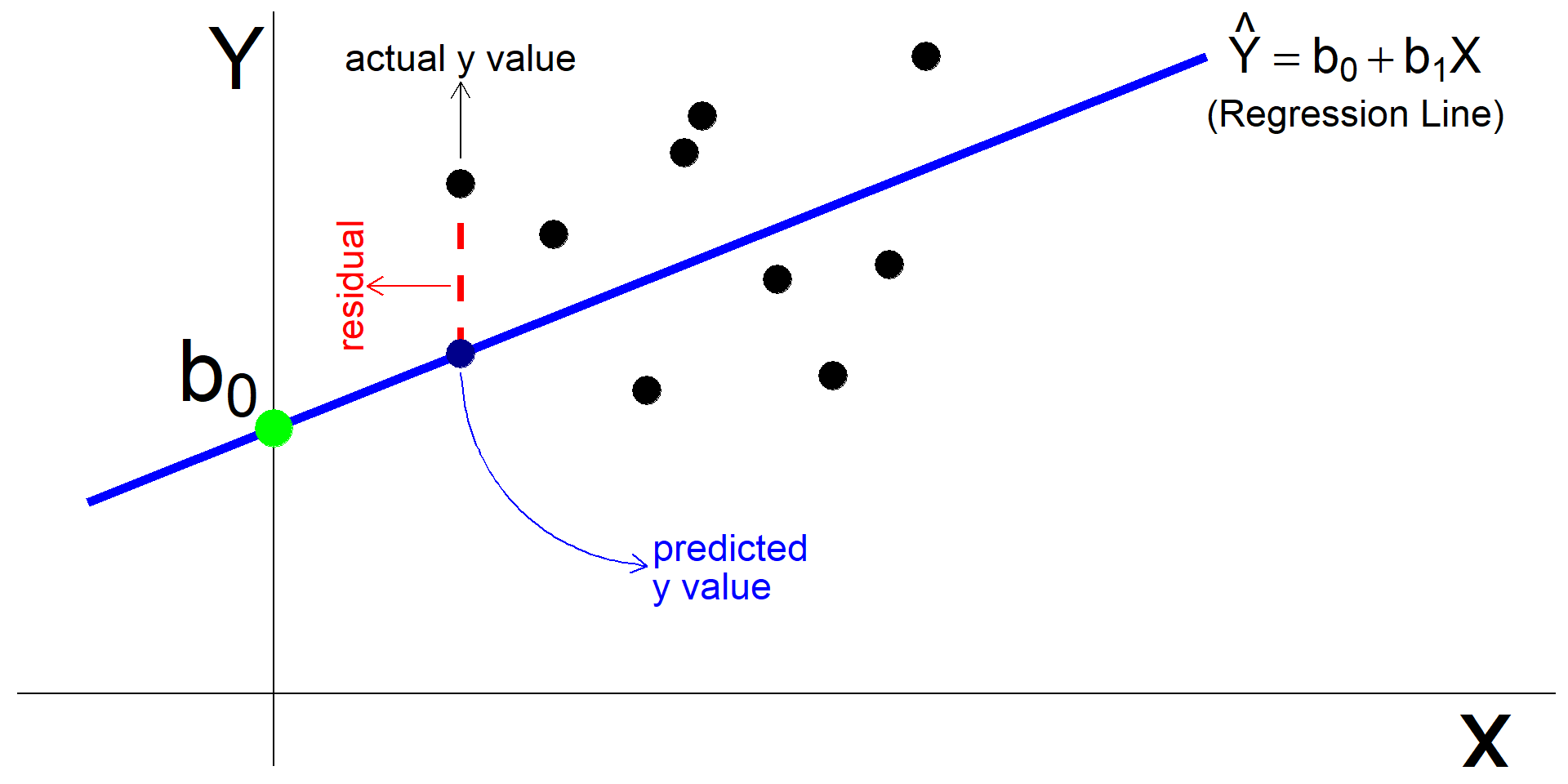

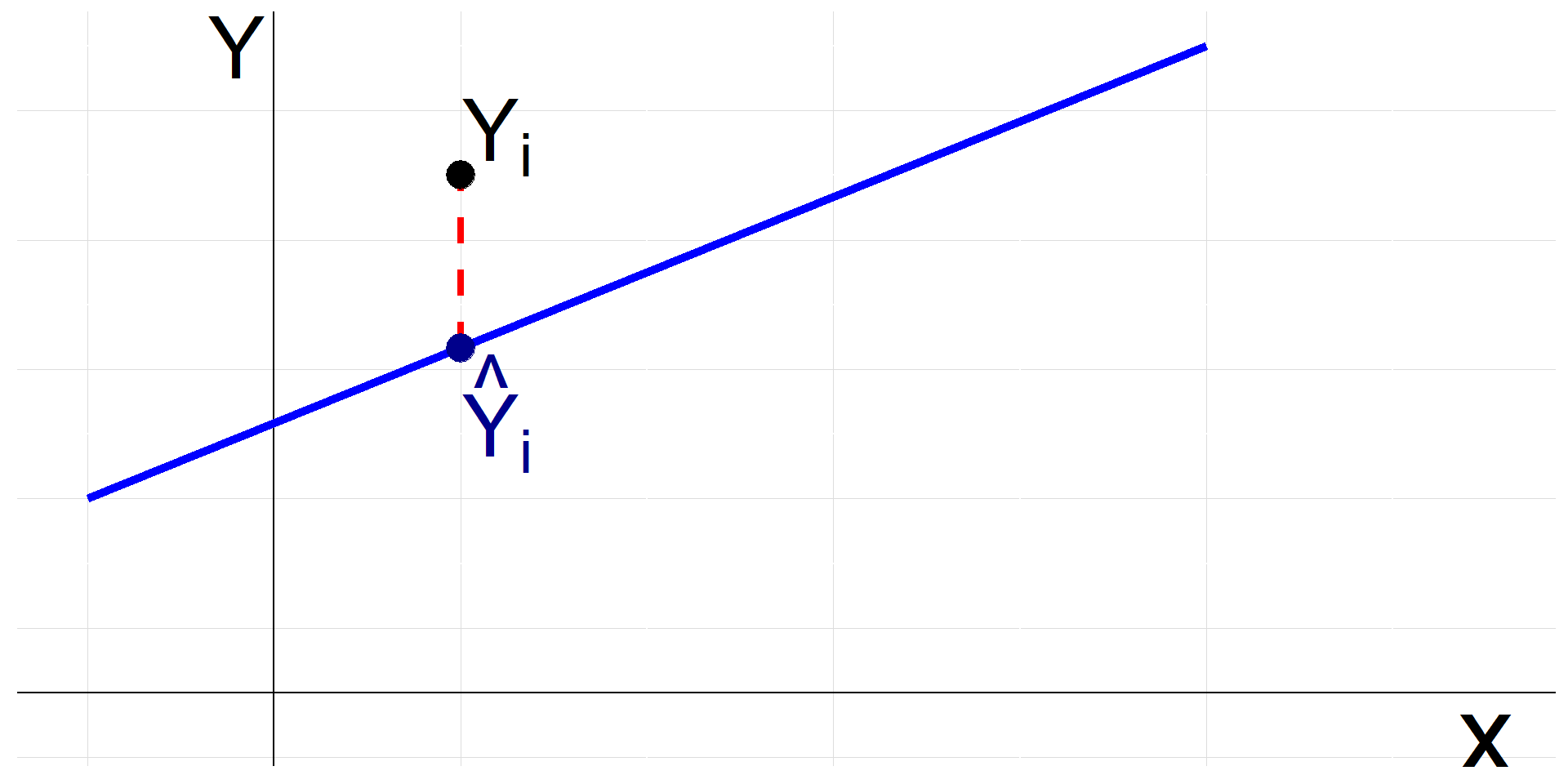

The model relating \(X\) and \(Y\) is given by: \[ Y_i = b_0 + b_1 X_i + \color{red}{\underbrace{\epsilon_i}_{\text{error term}}} \]

The hat in \(\widehat{Y}\) indicates the value is predicted from the model.
- Generally, the predicted value will be different from the actual value.

The model: components

Fitting

We want to find the line that best fits the data;
The best line is the one that minimizes the square of all residuals;
We sum the square residuals and look for the line that minimizes it;

Let’s try to fit a line ourselves!

Fitting

Scroll down – You might need to refresh this page to show the plot

What values to use for \(b_0\) and \(b_1\)?

viewof intercept = {
    let input = Inputs.range([-1, 13],
                             {
                                value: 8,
                                step: .01,
                                label: "Intercept: ",
                                width: 300
                             });

    d3.select(input).select("label")._groups[0][0].innerHTML = 'b<sub>0</sub>: ';

    return input
}

viewof slope = {
    let input = Inputs.range([-5, 5],
                             {value: 0,
                             step: .01,
                             label: "Slope: ", width: 300});

    d3.select(input).select("label")._groups[0][0].innerHTML = 'b<sub>1</sub>:';

    return input

}

Fitting

You might need to refresh this page to show the plot

We want \(b_0\) and \(b_1\) that minimizes the Sum of Square Error;

d3_createScatterPlotWithLine({
    elementId: 'scatterplot-penguins-3',
    //xName: 'flipper_length_mm',
    //yName: 'body_mass_g',
    xName: 'x',
    yName: 'y',
    data: data_test,
    slope: 1.6307,
    intercept: 4.7911,
    drawErrorLines: true,
    title: `Residual Sum of Squares: ${sumOfSquaredResiduals({slope: 1.6307, intercept: 4.7911, data: data_test, xName: 'x', yName: 'y'}).toFixed(3)}` ,
    xlab: 'Explanatory Variable',
    ylab: "Response Variable",
    titleFontSize: "24px",
    labelFontSize: "18px",
    tickFontSize: '16px',
    pointSize: 3,
    pointColor: 'steelblue',
    margin: {top: 80, right: 40, bottom: 100, left: 80}
    //lineCallback,
    //styles = {}
  });

Simple Linear Regression: Fitting

As it turns out the best line is given by:
- Slope: \[b_1 = r\frac{s_Y}{s_X}\] where \(r\) is the correlation coefficient;
- Intercept: \[b_0 = \bar{y} - b_1\bar{x}\]
Note that the line will always pass through \((\bar{x}, \bar{y})\);

Interpretation \(b_0\) and \(b_1\)

Slope: an increase of 1 unit of \(X\) is associated with an expected increase of \(b_1\) units in \(Y\).
- It is associated with, not the cause of!
Intercept: The average value of \(Y\) when \(X = 0\) is \(b_0\).

Important: Association is not causality.

In general, we cannot conclude that changes in \(X\) cause a change in \(Y\). The conclusion of causality requires more than a good model.

Example

Scroll down

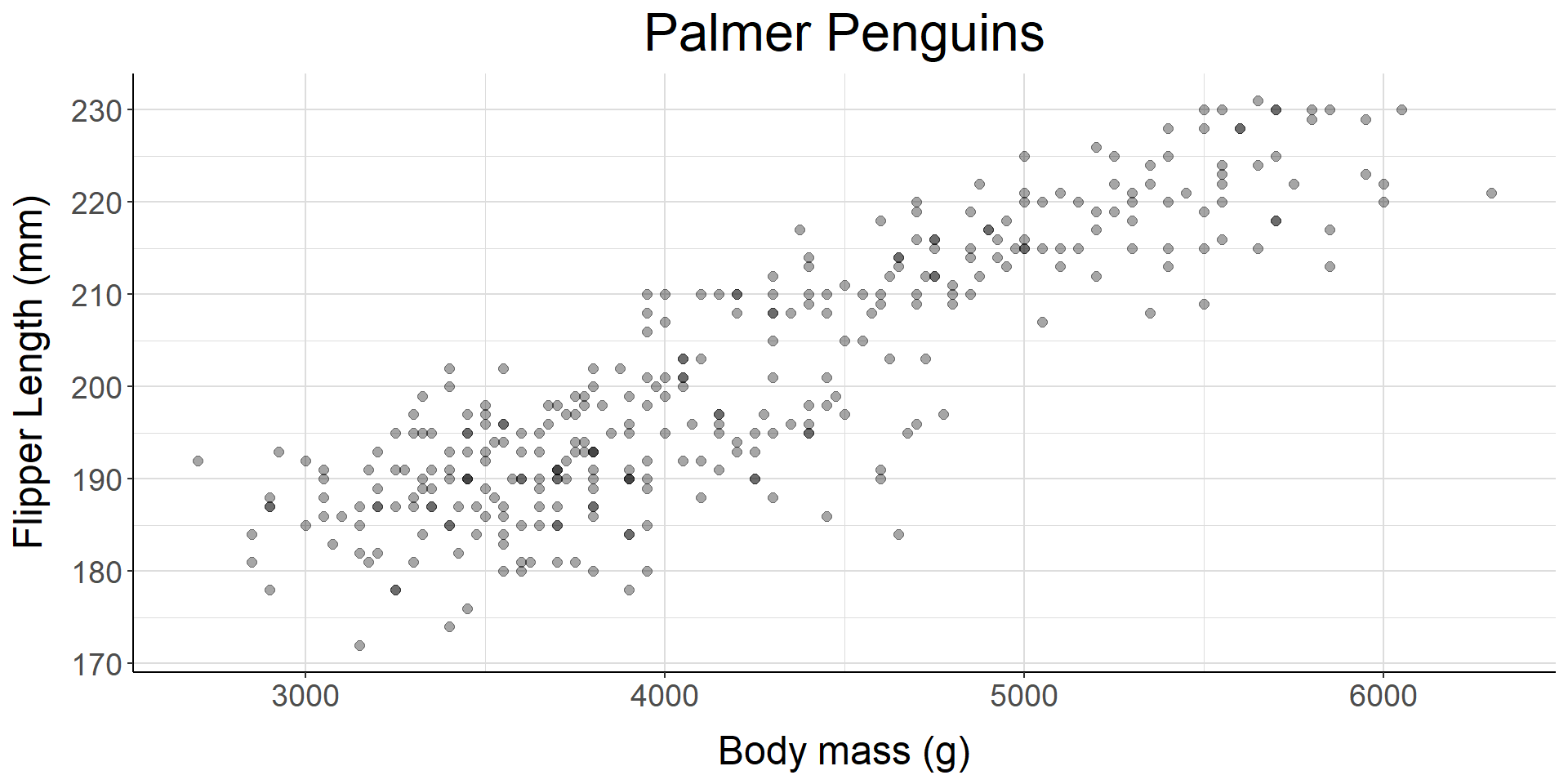

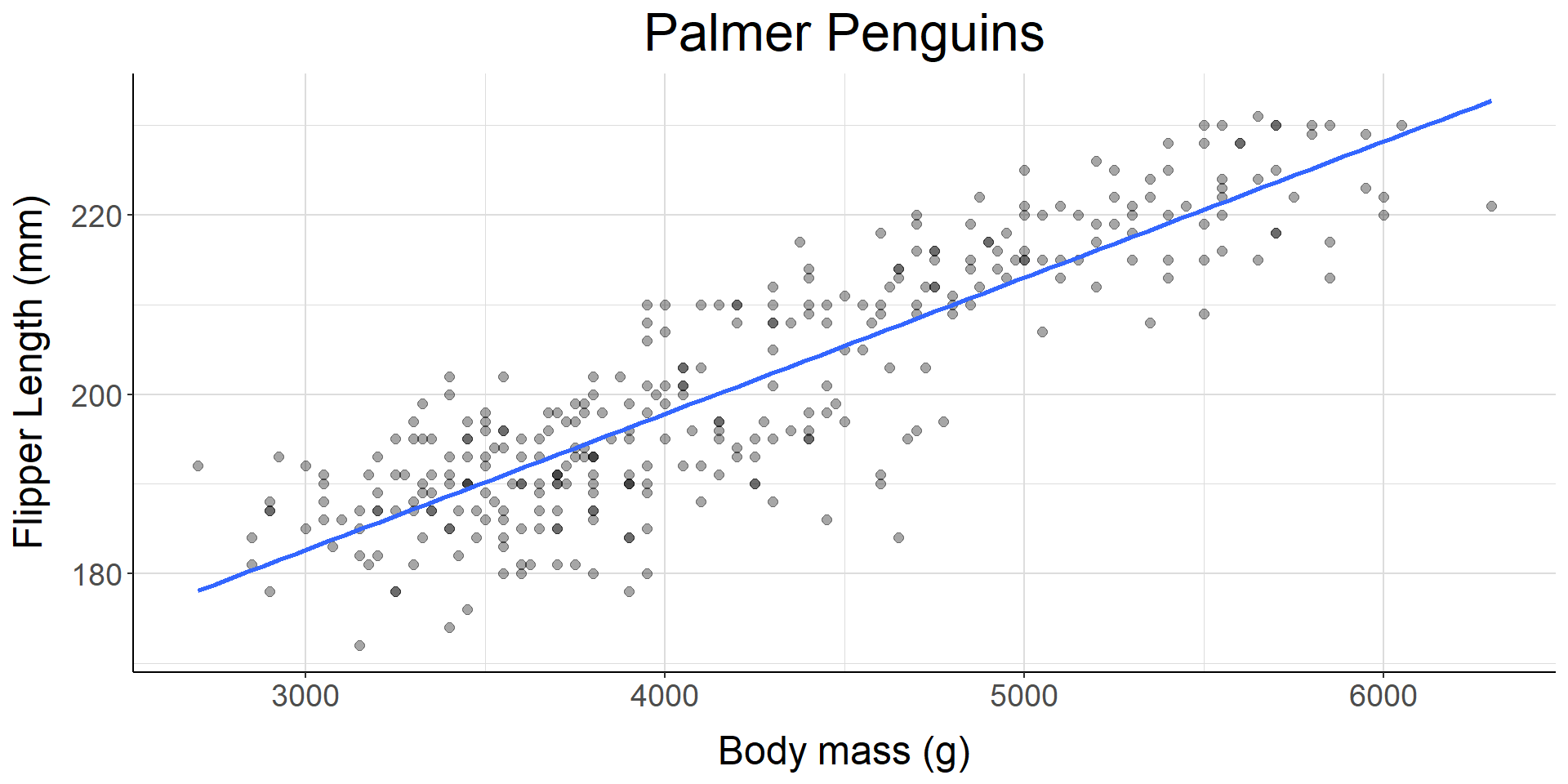

Let’s fit a linear regression to explain the penguins’ flipper length based on the penguins’ body weight.

Summary Quantities:

\(\bar{X}: 4207\)
\(\bar{Y}: 201\)
\(S_X: 805\)
\(S_Y: 14\)
\(r = 0.87\)

Regression:

\(b_1 =\)

\(b_0 =\)

The residuals

The residuals is defined as:

\[ r_i = \underbrace{Y_i}_{\text{(from data)}} - \underbrace{\widehat{Y}_i}_{(\text{from model})} \]

We fitted the model by minimizing the sum of squared residuals;
- When fitted this way, the sum of residuals is equal to zero;

Goodness of fit

Remember that the residuals contain everything the model couldn’t capture.
So, the residuals are helpful to check the goodness of fit of our model.

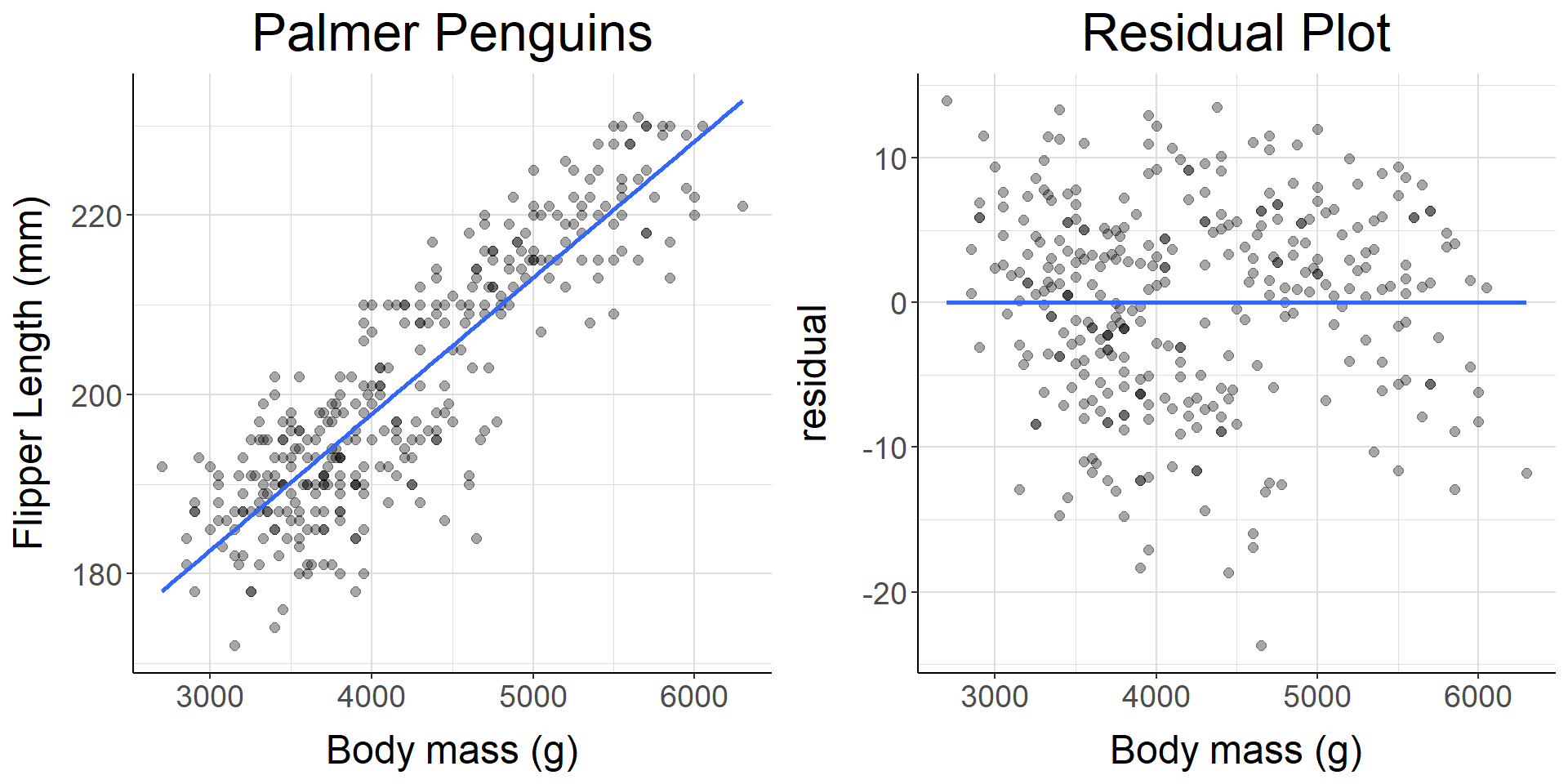

A commonly used plot is the response vs. the explanatory variable scatterplot.
- If the model is appropriate, this plot should show no pattern.

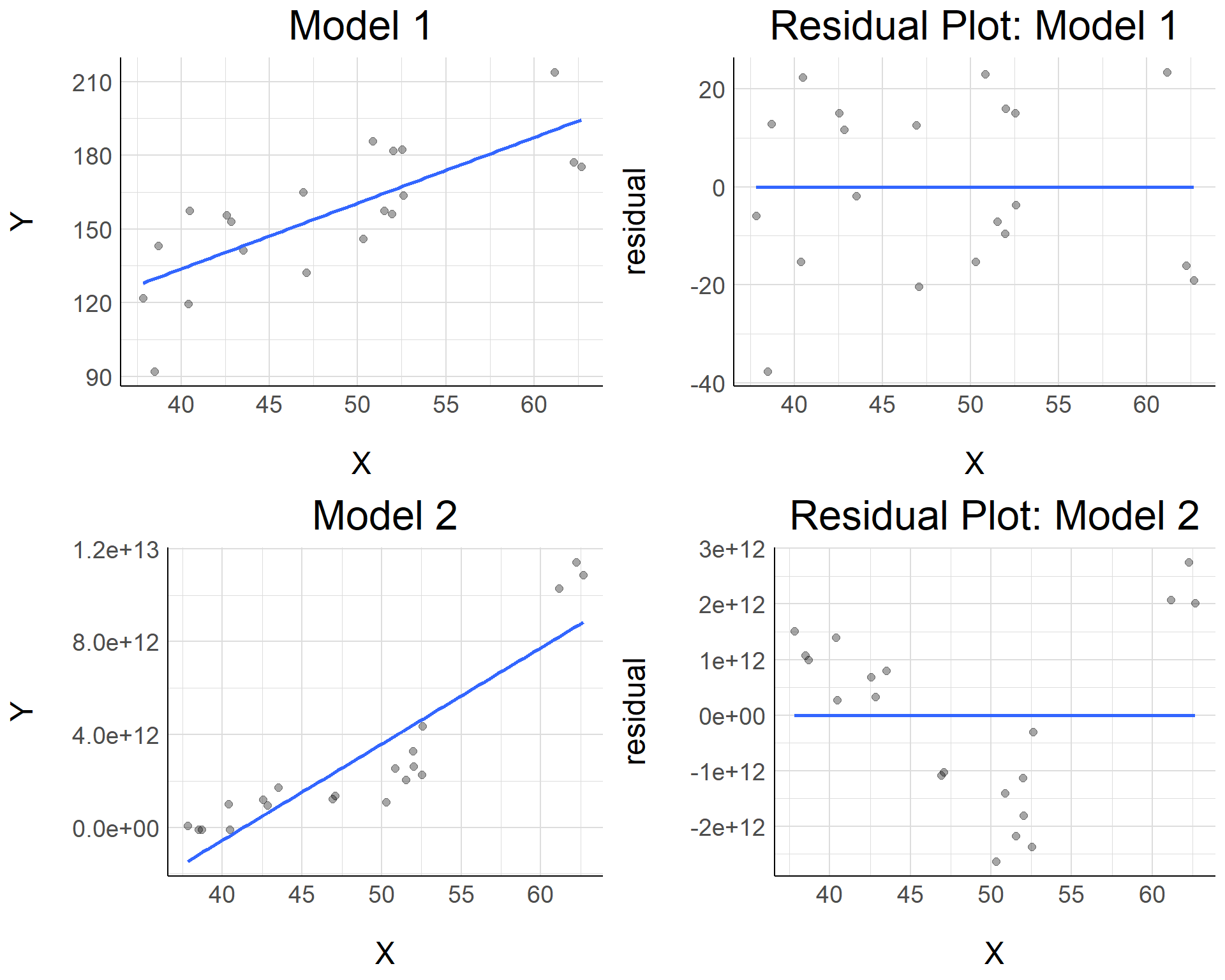

Residual Plot

Residual Plot: Response vs Covariate

What are your thoughts here?

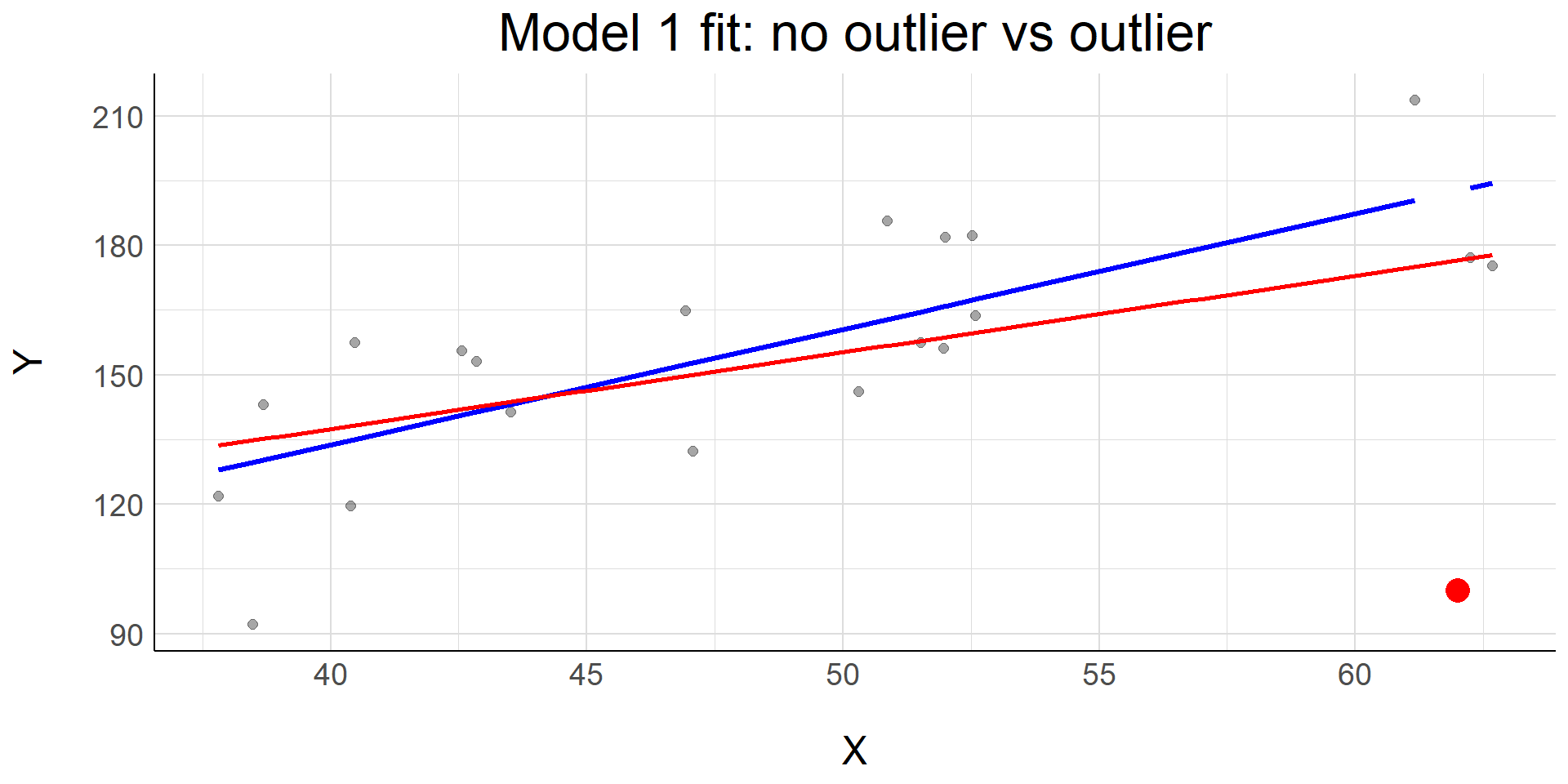

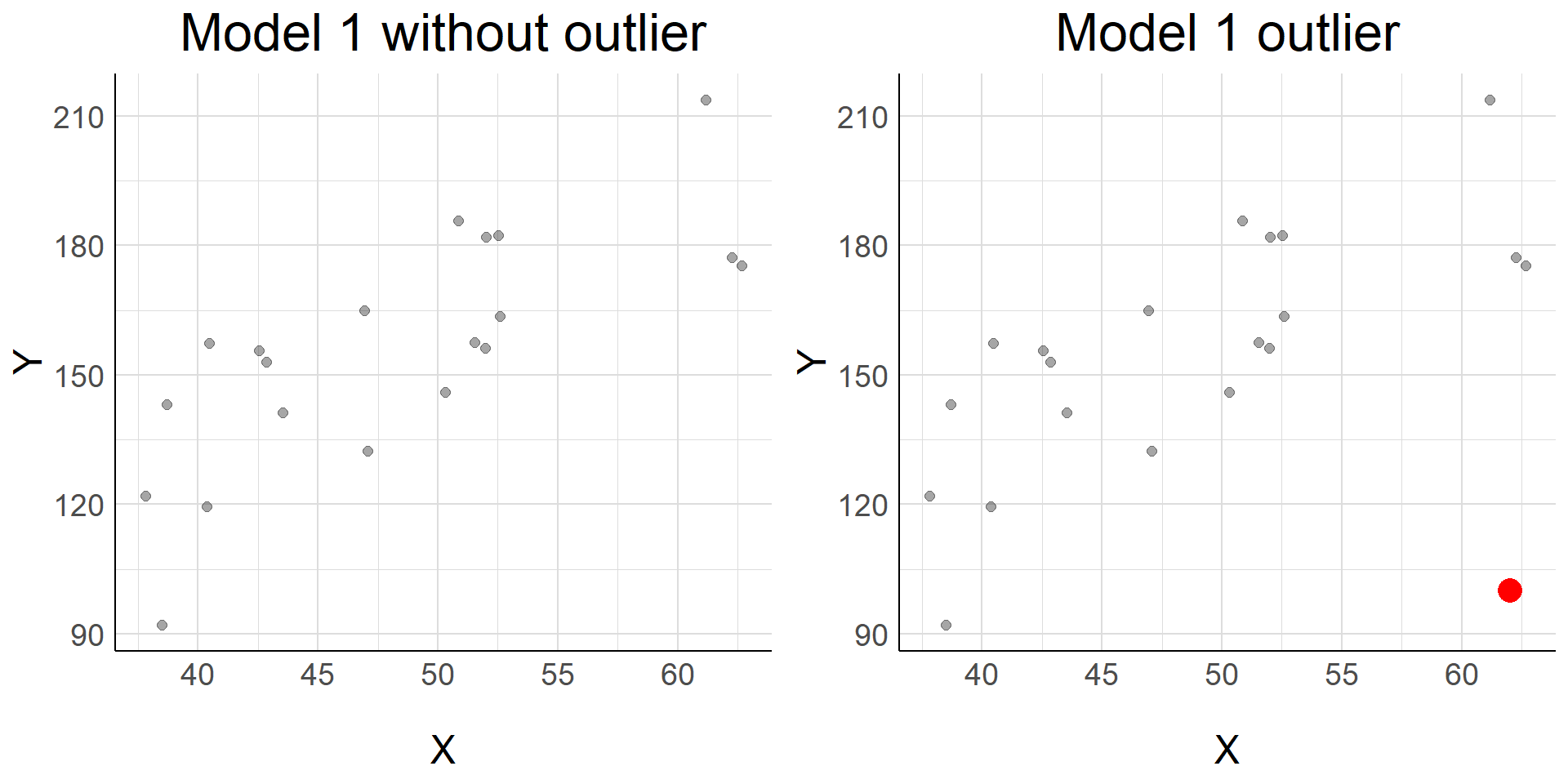

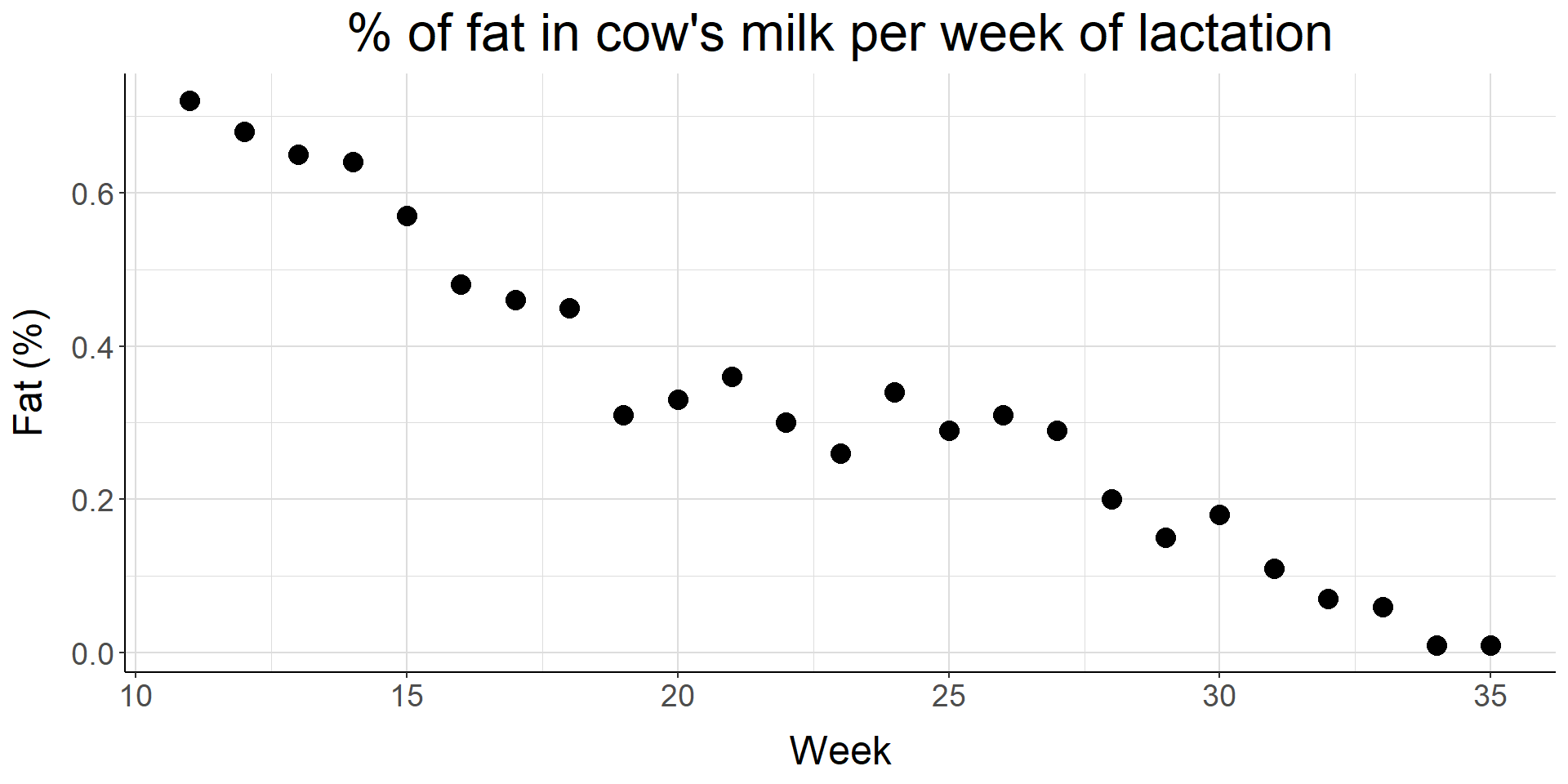

Outliers and Influential Points

Outliers might greatly affect the fitted linear model.
Data points whose omission results in a very different fitted regression model are influential points.
- Outliers are not necessarily influential points (they might be!).

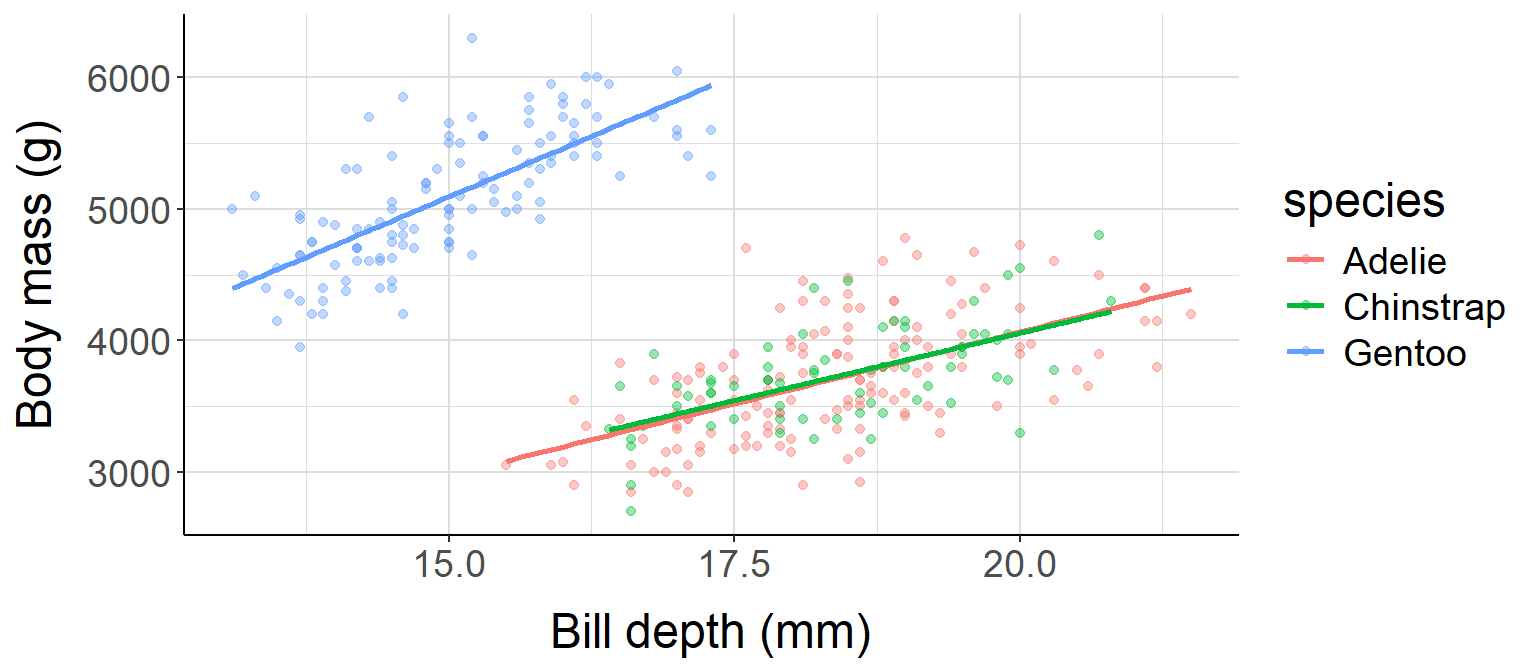

In these cases, One should fit separate regression lines to the data with and without the outliers, and compare the results.
- The outliers should not be omitted without justification.

Outliers and Influential Points

The Range problem

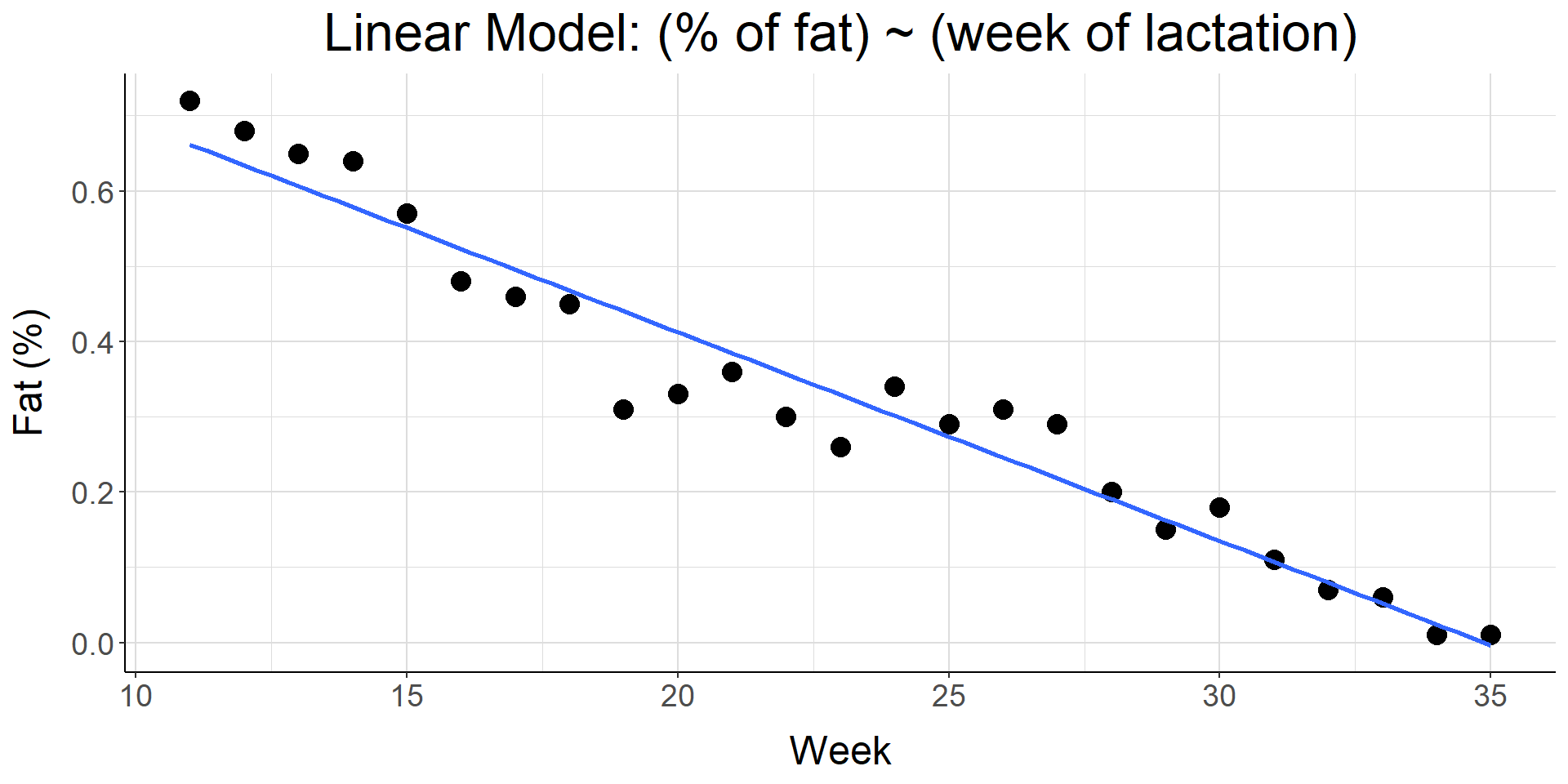

According to our model, what is the % of fat after week 36?

The Range problem

According to our model, what is the % of fat before week 11?

The Range problem

Let’s look at the actual data before week 10:

The Range problem: Take-away

There’s no way for us to know whether the relationship is still linear outside the range of the data;
You should not predict outside the range of the data;

Simpson’s Paradox

Scroll down

Let’s fit a model to explain penguins’ body mass based on the bill depth.

This model suggests that an increase in the bill depth is associated with a decrease in body mass!

Simpson’s Paradox

Simpson’s Paradox

But if we fit one linear regression per species, we get…

By controlling for species, the correlation between bill depth and body mass becomes positive;

References

Horst, Allison Marie, Alison Presmanes Hill, and Kristen B Gorman. 2020. Palmerpenguins: Palmer Archipelago (Antarctica) Penguin Data. https://doi.org/10.5281/zenodo.3960218.
